CAN Charger 72V 10A (84V Output) Lithium-ion Fast Charger – Compatible Models for Revolt RV400, RV 1, RV 1+, Blaze

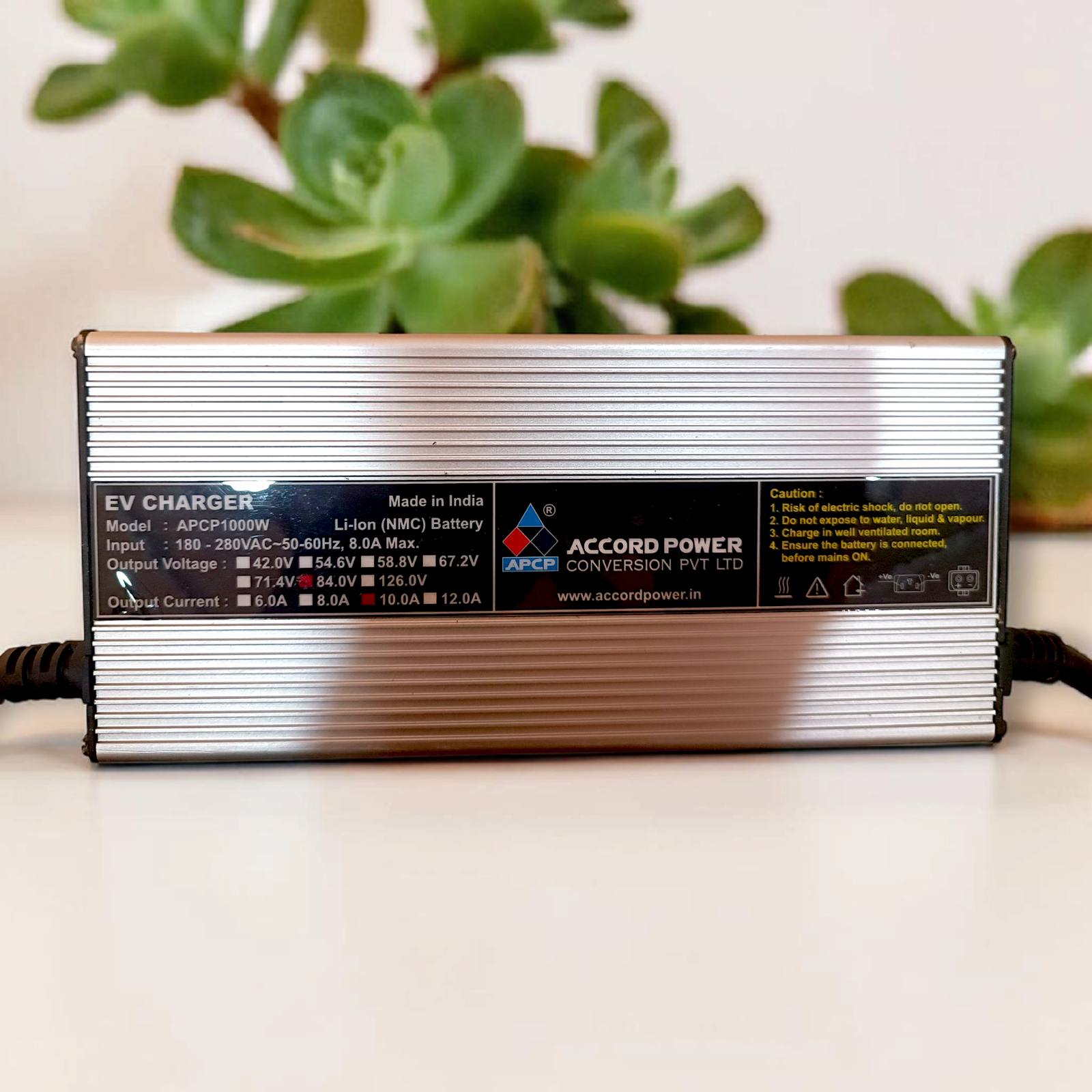

CAN Charger 72V 10A – 84V Output Lithium-ion Fast Charger

Upgrade or replace your existing EV charger with this 72V 10A CAN Charger, featuring an 84V DC output and designed for compatible Revolt electric motorcycles.

This charger is suitable for charging compatible 72V lithium-ion battery packs used in electric two-wheelers. With a 10A charging output, it is designed to provide faster charging compared with lower-current chargers, subject to the battery, BMS, and vehicle charging-system specifications.

The charger uses CAN communication, allowing it to communicate with compatible battery/BMS systems where CAN-based charging control is supported.

Key Features

• Charger Type: CAN Communication Lithium-ion Charger
• Rated Battery Voltage: 72V
• Output Voltage: 84V DC
• Maximum Output Current: 10A
• Battery Chemistry: Lithium-ion / Li-ion
• Communication: CAN
• Application: Electric motorcycle / electric two-wheeler
• Charging Type: Fast charging
• Suitable as a replacement charger for compatible original chargers
• Designed for compatible 72V lithium-ion EV battery systems
• Suitable for EV service centres, technicians and replacement applications

Compatible Revolt Models

This charger is intended for compatible variants of:

• Revolt RV400
• Revolt RV1
• Revolt RV1+
• Revolt Blaze

Important: Compatibility depends on the battery/BMS CAN communication protocol, charging connector, pin configuration and charger communication settings. Please verify these specifications with your original charger and vehicle before ordering.

72V Battery & 84V Charger Output

A lithium-ion battery marketed as 72V typically uses a 20-series (20S) configuration.

For a conventional Li-ion 20S battery:

20 × 4.2V = 84V

Therefore, an 84V charger output is appropriate for a compatible fully charged 72V nominal 20S lithium-ion battery pack.

The charger should not be used with a different battery chemistry or series configuration unless the battery manufacturer’s specifications specifically confirm compatibility.

10A Fast Charging

With a maximum charging current of 10A, the charger can provide significantly faster charging than a lower-current charger.

Actual charging time depends on:

• Battery capacity (Ah)
• Battery state of charge
• BMS charging-current limit
• CAN communication
• Battery temperature
• Charger efficiency
• Battery condition

For example, a 72V 45Ah battery theoretically requires approximately 4.5 hours at 10A under ideal conditions, but actual charging time can be longer because charging current normally reduces near full charge.

CAN Communication

This charger is equipped with CAN communication for compatible EV battery systems.

CAN communication may be required for the charger and BMS to exchange charging-related information such as:

• Charging permission
• Battery status
• Charging current control
• Charging voltage control
• Charging termination

Do not assume that every 72V Revolt battery will work simply because the voltage is 72V. The CAN protocol, connector and pin configuration must also match.

Before Ordering – Important

Please check the following against your existing charger:

1. Input voltage specification
2. Output voltage – 84V DC
3. Maximum output current – 10A
4. Battery chemistry – Lithium-ion
5. CAN communication requirement

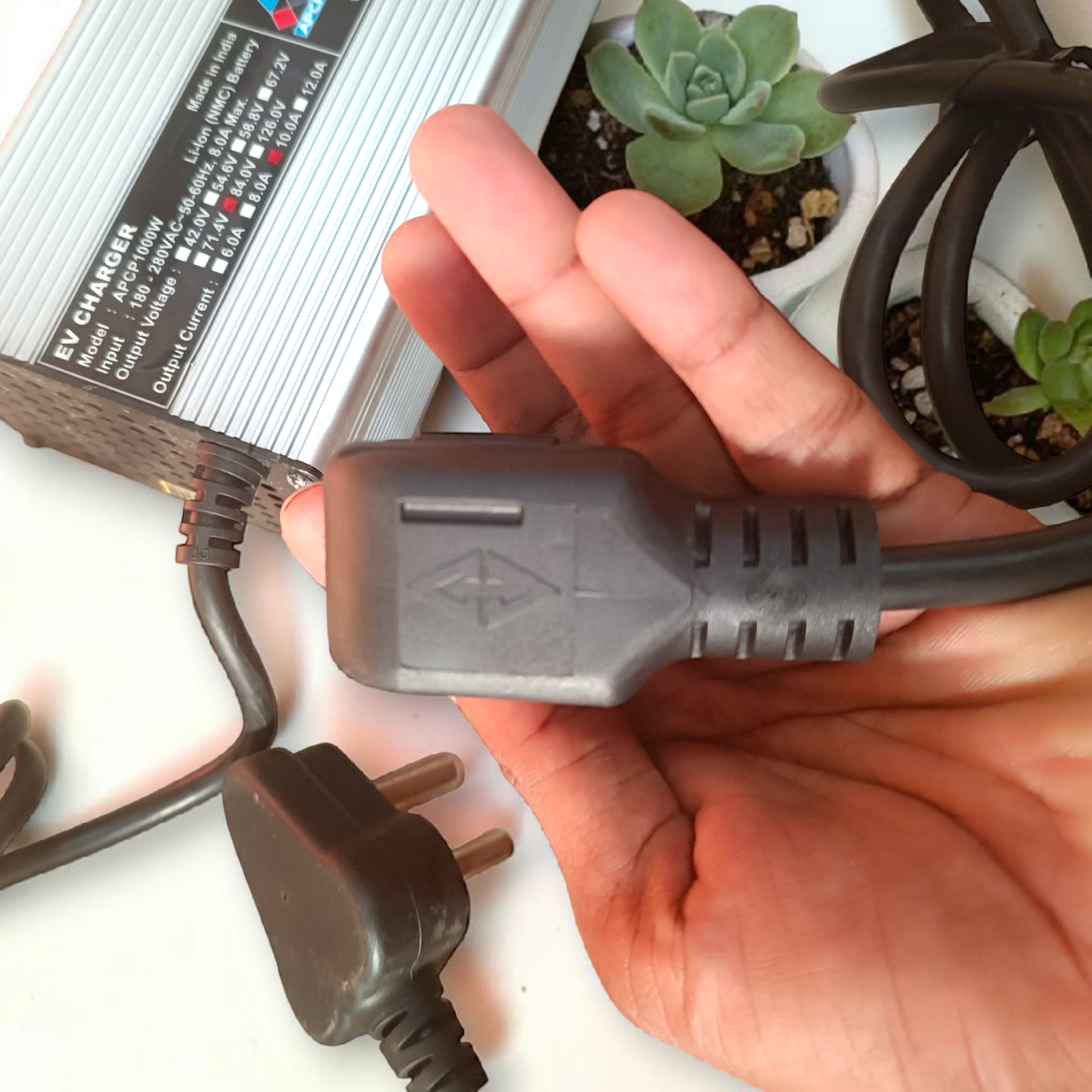

6. Charging connector
7. Connector pin configuration
8. CAN-H / CAN-L wiring
9. Charger communication protocol

If your original charger has a different connector or CAN pin configuration, do not connect it directly without verifying the wiring.

Safety Information

This is a high-power lithium-ion battery charger. Incorrect voltage, polarity, CAN wiring or battery compatibility can damage the charger, BMS or battery and may create a safety hazard.

Always use the charger with a battery/BMS system that is specifically designed to accept an 84V maximum charging voltage and the appropriate charging current.

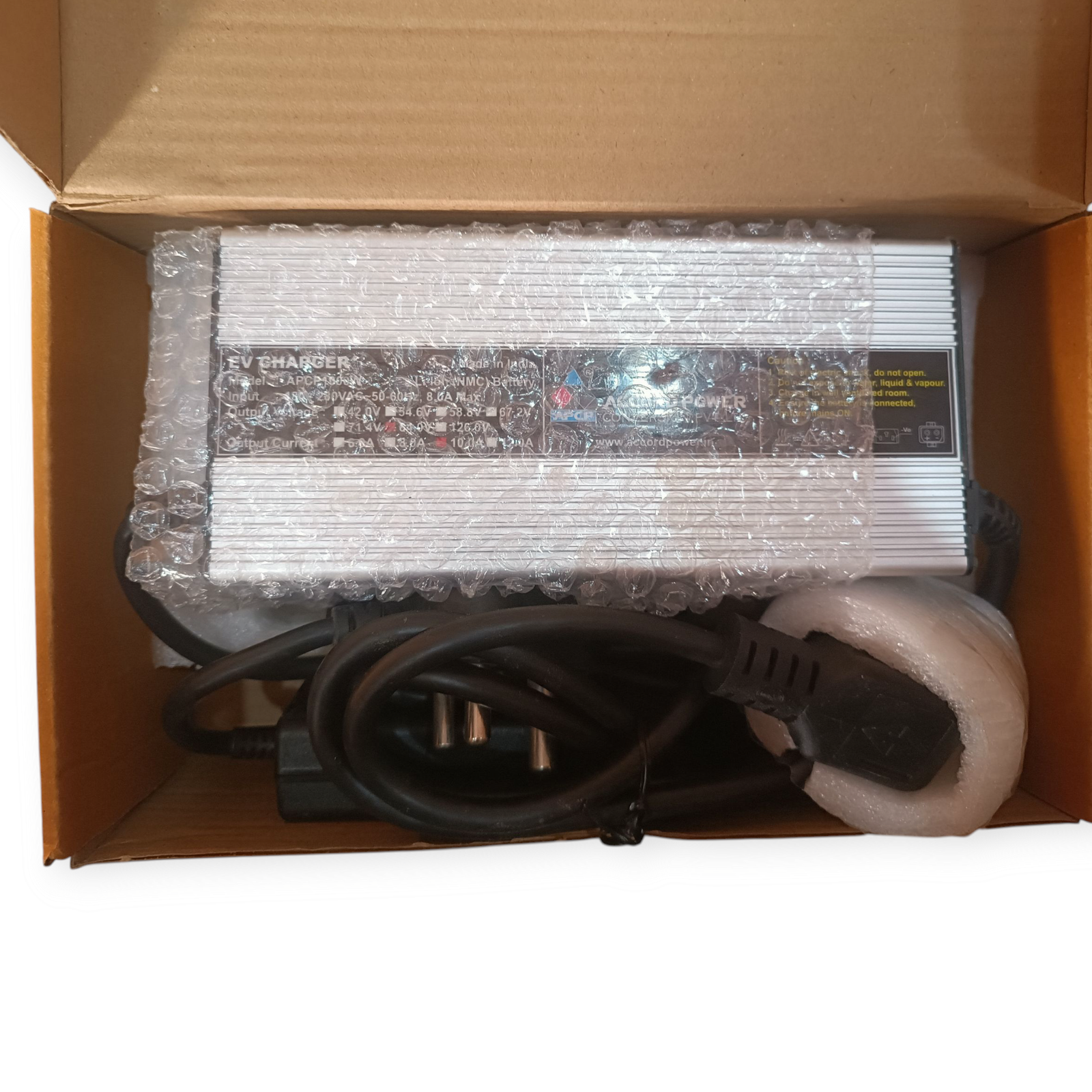

Package Includes

1 × 72V 10A CAN Lithium-ion Charger – 84V Output

Applications

Suitable for:

• Revolt electric motorcycle servicing
• EV battery charging
• Replacement charger applications
• EV repair workshops
• Lithium-ion 72V battery systems
• Compatible Revolt RV400 / RV1 / RV1+ / Blaze applications
